Sikaflex®-211 WR
Sikaflex®-211 WR is 1-component elastic polyurethane joint sealant . Its very good weathering resistance makes it very suitable for the use in exterior joints.
- Very good weathering and aging resistance
- Good processing and tooling characteristics
- Bonds well to a wide range of substrates
- Non-corrosive
PRODUCT BENEFITS
- Very good weathering and aging resistance
- Good processing and tooling characteristics
- Bonds well to a wide range of substrates
- Non-corrosive
Usage
Sikaflex®-211 WR exhibits very good weathering and aging resistant performance. It is suitable for exteiror joint sealing applications and bonds well to a wide variety of substrates. Seek manufacturer’s advice and perform tests on original substrates before using Sikaflex®-211 WR on materials prone to stress cracking. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed to ensure adhesion and material compatibility.Packaging
| Unipack | 600 ml |
Product Details
| Chemical base | 1-component polyurethane | |
| Color (CQP001-1) | Black | |
| Cure mechanism | Moisture-curing | |
| Density (uncured) | 1.3 kg/l | |
| Non-sag properties | Good | |
| Application temperature | ambient | 5 – 40 °C |
| Skin time (CQP019-1) | 30 minutes A | |
| Curing speed (CQP049-1) | (see diagram) | |
| Shore A hardness (CQP023-1 / ISO 48-4) | 40 | |
| Tensile strength (CQP036-1 / ISO 527) | 1.8 MPa | |
| Elongation at break (CQP036-1 / ISO 527) | 600 % | |
| Tear propagation resistance (CQP045-1 / ISO 34) | 8 N/mm | |
| Service temperature (CQP513-1) | -40 – 90 °C | |
| Shelf life | 6 months B |
| CQP = Corporate Quality Procedure | A) 23 °C / 50 % r.h. | B) storage below 25 °C |
CURE MECHANISM
Sikaflex®-211 WR cures by reaction with atmospheric moisture. At low temperatures the water content of the air is generally lower and the curing reaction proceeds somewhat slower (see diagram 1).

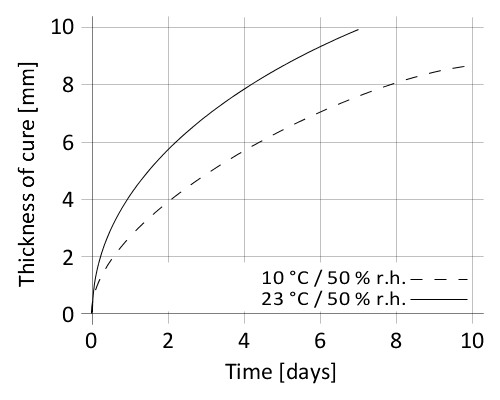

Diagram 1: Curing speed for Sikaflex®-211 WR
CHEMICAL RESISTANCE
Sikaflex®-211 WR is generally resistant to fresh water, seawater, diluted acids and diluted caustic solutions; temporarily resistant to fuels, mineral oils, vegetable and animal fats and oils; not resistant to organic acids, glycolic alcohol, concentrated mineral acids and caustic solutions or solvents.
Application
Surface preparation
Surfaces must be clean, dry and free from grease, oil and dust.
Surface treatment depends on the specific nature of the substrates and is crucial for a long lasting bond. Suggestions for surface preparation may be found on the current edition of the appropriate Sika® Pre-Treatment Chart. Consider that these suggestions are based on experience and have in any case to be verified by tests on original substrates.
Application
Sikaflex®-211 WR can be processed between 5 °C and 40 °C but changes in reactivity and application properties have to be considered. The optimum temperature for substrate and sealant is between 15 °C and 25 °C.
Sikaflex®-211 WR can be processed with manual, pneumatic or electric driven piston guns.
Tooling and finishing
Tooling and finishing must be carried out within the skin time of the product. It is recommended using Sika® Tooling Agent N. Other finishing agents must be tested for suitability and compatibility prior the use.
Removal
Uncured Sikaflex®-211 WR can be removed from tools and equipment with Sika® Remover-208 or other suitable solvents. Once cured, the material can only be removed mechanically. Hands and exposed skin have to be washed immediately using hand wipes such as Sika® Cleaner-350H or a suitable industrial hand cleaner and water.
Do not use solvents on skin.
