Sikament®-520N

Sikament®-520N

High Range Water-Reducing and Set Retarding Concrete Admixture

Sikament®-520N is a highly effective superplasticizer with a set-retarding effect for producing free-flowing concrete in hot climates. Also, a substantial water reducing agent for promoting high early and ultimate strengths.

Sikament®-520N provides the following properties:

As a Superplasticizer:
  • Substantial improvement in workability without increased water or the risk of segregation
  • Longlasting control of slump loss.
  • No adverse effect on ultimate strengths
As a Water Reducer:
  • Early strengths significantly increased
  • High ultimate strengths
  • Up to 30% water reduction
  • Especially suitable for hot climates
  • No excessive air-entrainment
  • No adverse shrinkage effect
  • Improved surface finish
  • Increased watertightness
Product Data Sheet Safety Data Sheet Show all documents

Usage

Sikament®-520N is used wherever high quality concrete is demanded under difficult placing and climatical conditions

Advantages

Sikament®-520N provides the following properties:

As a Superplasticizer:
  • Substantial improvement in workability without increased water or the risk of segregation
  • Longlasting control of slump loss.
  • No adverse effect on ultimate strengths
As a Water Reducer:
  • Early strengths significantly increased
  • High ultimate strengths
  • Up to 30% water reduction
  • Especially suitable for hot climates
  • No excessive air-entrainment
  • No adverse shrinkage effect
  • Improved surface finish
  • Increased watertightness

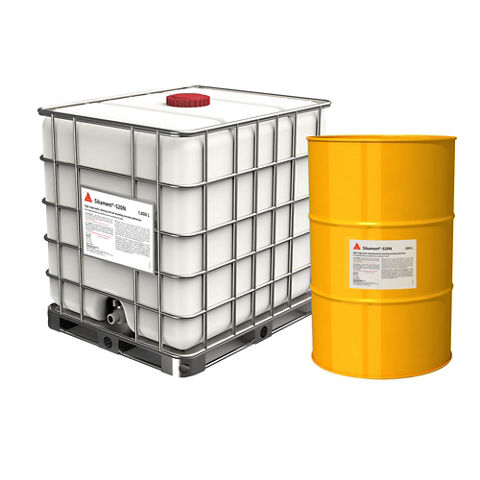

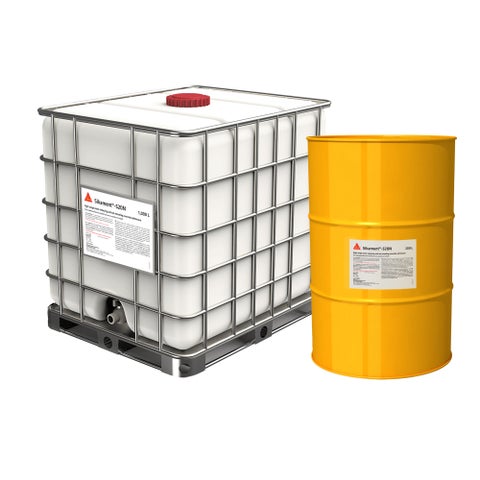

Packaging

200 L/ drum
1,000 L/ tote

Colour

Brown Liquid

Product Details

Sustainability / Certifications / Approvals

APPROVALS / CERTIFICATES

Complies with ASTM C-494 Type G
Product Information

Composition

Blended Polymer

Shelf life

12 months from the date of production If stored properly in undamaged, original, sealed packaging.

Storage conditions

Store in dry conditions, protected from direct sunlight at temperature between 5°C and 40°C

Density

1.195 - 1.215 kg/L (at +25°C)

pH-Value

~ 6.5 - 8.5


Technical Information

Concrete Mix Design

High Strength Concrete

Flowing Concrete

Cement

425 kg/m3

425 kg/m3

W/C

0.32

0.36

S/A0.390.45

Sikament®-520N

1.2% bwc

1.4% bwc

Application

Application Information

Compatibility

Sikament®-520N is compatible with all types of Portland Cement, including S.R.C. type and Hydraulic Cement.

Dispensing

Sikament®-520N can be added separately to the freshly mixed concrete or directly to the mixing water prior to its addition to the aggregates. When added separately to the freshly mixed concrete, further mixing should take place for at least one minute per cubic meter.
Consumption

Recommended Dosage

800 - 2,500 cc. per 100 kg. of cement weight. Exact dosage rates are dependent on the type of effect sought, quality of cement and aggregates, Water/Cement-ratio and ambient temperature.Therefore, it is advisable to carry out trial mixes.
