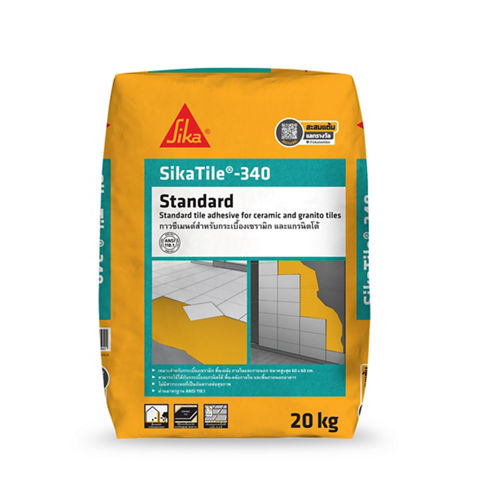

SikaTile®-340 Standard

SikaTile®-340 Standard

STANDARD TILE ADHESIVE FOR CERAMIC AND GRANITO

SikaTile®-340 Standard is a general cement-based tile adhesive for ceramic and clay tile with a single component, pre-packed tiling adhesive mortar combining cement with selected grades of sand and several additives. Only requires the addition of water.

  • Good bonding strength.
  • Extended open time resulting in faster application.
  • Tile can be adjusted after laying within 15 minutes.
  • Smooth and easy to use.
  • Low VOCs
Product Data Sheet Show all documents

Usage

  • Perfect for ceramic floor and wall tiles. Interior and exterior use.
  • Suitable for porcelain, granito up to 60x60 cm.
    Interior floor and wall installation.
  • Can be used for porcelain, granito exterior floor
    installation only.
  • Substrates: Cement.

Advantages

  • Good bonding strength.
  • Extended open time resulting in faster application.
  • Tile can be adjusted after laying within 15 minutes.
  • Smooth and easy to use.
  • Low VOCs

Packaging

20 kg/ bag

Colour

Grey powder

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

ANSI 118.1
Product Information

Composition

Hydraulic binder, mineral filler, polymer, and admixtures

Shelf life

12 months from date of production if stored in undamaged and unopened, original sealed packaging

Storage conditions

Store in dry condition and protected from direct sunshine

Density

1.4 ± 0.1 kg/L

pH-Value

12 ± 1
Technical Information

Tensile adhesion strength

At 28 days

Initial

≥ 0.5 MPa

EN 12004

ISO 13007

Shear adhesion strength

Glazed Wall Tile

7 days

≥ 1.38 MPa

7 days water immersion

≥ 1.03 MPa

Porcelain Mosaic Tile

1 day

≥ 0.34 MPa

7 days

≥ 1.03 MPa

7 days water immersion≥ 0.69 MPa
28 days ≥ 1.03 MPa
12 weeks≥ 1.03 MPa

Application

Application Information

Slip resistance

≤ 0.5 mm

Ambient air temperature

+5°C to +35°C

Mixing ratio

Approximate 4.8 to 5.4 litre water per bag 20 kg

Pot Life

180 - 240 minutes (at 25°C)

Open Time

20 - 25 minutes (at 25°C)

Adjustability time

15 - 20 minutes (at 25°C)

Applied product ready for use

~ 24 hours
Consumption

Consumption

Trowel Size

Tile Size

(cm x cm)

Tile Surface

(cm2)

Consumption

(20 kg)

3 mm

2.5 x 2.5

5 x 5

6.25

25

7 - 8 m2

6 mm

10 x 10

20 x 20

20 x 25

30 x 30

100

400

500

900

5 - 6 m2

9 mm

40 x 40

50 x 50

60 x 60

> 60 x 60

1,600

2,500

3,600

> 3,600

2 - 3 m2

Note :

1. This is an average calculation. Actual usage may differ from the estimate. Due to the different surface conditions. Surface absorption and the purpose of the individual's use.

2. For tile sizes larger than 40x40 cm, apply tile adhesive on the surface and a very thin layer on the back of the tile.
Application steps

MIXING

  • Mix SikaTile®-340 Standard 20 kg with 4.8 - 5.4 Litres of clean water with electrical mixer until the

    compound is evenly distributed.

  • Allow the mixture to stand for 2 - 3 minutes for a good reaction and reduce air bubbles before using the adhesive.

APPLICATION

  • Spread tile adhesive by using a notched trowel onto the substrate.
  • Fix tile on tile adhesive and knock it over with a

    rubber hammer.

  • Dual bonding should be applied when the tile size is larger than 25 cm x 25 cm. Apply a thin layer of tile adhesive onto the back of the tile, then fix the tile onto the adhesive substrate.
  • Once the tiles have been laid, leave them to stand for 24 hours or until the tile adhesive is dry before grouting with SikaTile Tile Grout.
