SikaTile®-630 TG Wide Gap

SikaTile®-630 TG Wide Gap

PREMIUM CG2WA CEMENTITIOUS TILE GROUT

SikaTile®-630 TG Wide Gap is a CG2WA polymer-modified premixed colored tile grout with water-repellency properties. It provides active protection against bacteria, algae, fungi, or black mold, which can cause stains or deterioration of the grouting.

  • Clean+ technology with a hygienic formula; anti-black mold and fungus; anti-bacteria, antialgae.
  • Water-repellent, low porosity, and anti-dirt
    absorption.
  • High strength, adhesion, crack, and abrasion
    resistance.
  • Resist to general cleaning agents.
Product Data Sheet Show all documents

Usage

  • Grouting the joints for most general types of tiles
  • Grouting gaps from 1 to 6 mm width
  • Floor and wall
  • Exterior and Interior
  • Especially used in damp areas such as bathrooms, kitchens, bedrooms, balconies, and other residential or common areas

Advantages

  • Clean+ technology with a hygienic formula; anti-black mold and fungus; anti-bacteria, antialgae.
  • Water-repellent, low porosity, and anti-dirt
    absorption.
  • High strength, adhesion, crack, and abrasion
    resistance.
  • Resist to general cleaning agents.

Packaging

1 kg bag, 10 bags per box

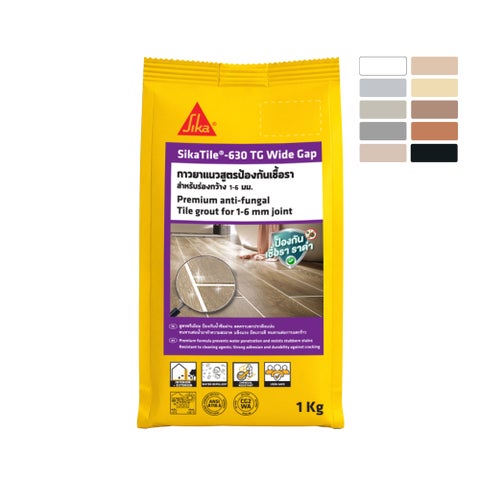

Colour

25 colors
snow white, silver grey, grey, granite, midnight black, cream almond, cream maple, cornsilk, vanilla, moonlight, milk tea, caramel, wood, golden
teak, fire brick, rose, peach, flamingo, red maroon, cocoa, morning blue, marine, andaman, mint, and leaf.

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

  • EN13888 CG2WA
  • ANSI 118.6
Product Information

Shelf life

18 months from the date of production if stored properly in undamaged original sealed packaging

Storage conditions

Store in dry conditions and protected from direct sunlight

Density

0.80 - 1.0 kg./L
Technical Information

Abrasion resistance

≤ 1000 mm3 (at 28 days)

Compressive strength

> 15 MPa (at 28 days)

Flexural-strength

> 2.5 MPa (at 28 days)

Shrinkage

< 3 mm/m (at 28 days)

Water absorption

after 30 min.

≤ 2 g (at 28 days)

after 240 min.≤ 5 g (at 28 days)

Application

Application Information

Ambient air temperature

min. +5°C to max. +35°C

Mixing ratio

0.33-0.34 litres of clean water per 1 kg bag of SikaTile®-630 TG Wide Gap

Pot Life

approx. 120 min. (25°C)

Waiting time

Tile grout can be applied after 24 hours of tiling application.
Wait 24 hours before traffic.
Consumption

Consumption

The consumption of grout varies depending on the size and thickness of the tile, as well as the width of the tile joints (unit: kg/m²)

Tile size

Thickness

Joint width

1 mm

Joint width

2 mm

Joint width

3 mm

1"x1"4 mm

0.54

1.09

1.63

2"x2" 4 mm

0.27

0.54

0.82

4"x4"5 mm

0.17

0.34

0.51

4"x4"10 mm

0.34

0.68

1.02

8"x8" 5 mm

0.09

0.17

0.26

8"x8" 10 mm

0.17

0.34

0.51

12"x12" 5 mm

0.06

0.11

0.17

12"x12" 10 mm

0.11

0.23

0.34

16"x16" 5 mm

0.04

0.09

0.13

16"x16" 10 mm

0.09

0.17

0.26

18"x18" 5 mm

0.04

0.08

0.11

18"x18" 10 mm

0.08

0.15

0.23

20"x20" 5 mm

0.03

0.07

0.10

20"x20" 10 mm

0.07

0.14

0.20

24"x24" 5 mm

0.03

0.06

0.09

24"x24" 10 mm0.060.110.17

Tile size

Thickness

Joint width

4 mm

Joint width

5 mm

Joint width

6 mm

1"x1"4 mm

2.18

2.72

3.26
2"x2" 4 mm1.09

1.36

1.63
4"x4"5 mm0.68

0.85

1.02
4"x4"10 mm1.36

1.70

2.04
8"x8" 5 mm0.34

0.43

0.51
8"x8" 10 mm0.68

0.85

1.02
12"x12" 5 mm0.23

0.28

0.34
12"x12" 10 mm0.45

0.57

0.68
16"x16" 5 mm0.17

0.21

0.26
16"x16" 10 mm0.34

0.43

0.51
18"x18" 5 mm0.15

0.19

0.23
18"x18" 10 mm0.30

0.38

0.45
20"x20" 5 mm0.14

0.17

0.20
20"x20" 10 mm0.27

0.34

0.41
24"x24" 5 mm0.11

0.14

0.17
24"x24" 10 mm0.230.280.34

(roughly 1 inch = 2.5 cm. = 25 mm.)

Waste will occur according to actual field performance including working method, skill and site condition.
Application steps

APPLICATION INSTRUCTIONS

MIXING

Mix 1 kg. bag of SikaTile®-630 TG Wide Gap with 0.33 - 0.34 liters of clean water until the product is evenly distributed. Let it stand for several minutes. Re-stir

before using. Only mix enough grout to cover 2 sqm. at a time.

APPLICATION

  • Wait 24 hours after tilling before applying tile grout.
  • Use a rubber trowel to fill the joint in a diagonal

    motion.

  • Wipe off excess grout.
  • Ensure the grout is pressed into the joints and not just sitting on top.
  • Quickly clean with a damp sponge.
  • Allow 2 hours before cleaning with a dry cloth.
  • Allow 24 hours before allowing traffic.
