LANKO® 534 Rebar Anchoring

LANKO® 534 Rebar Anchoring

EPOXY FOR ADHESIVE AND REPAIRING

LANKO® 534 Rebar Anchoring is a dual-component epoxy, based on a combination of epoxy resins and special fillers, with high bonding and high tensile strength, use for structural 2-component adhesive and repair mortar.

  • High compressive strength.
  • High adhesion strength.
  • Good abrasion resistance.
  • Hardens without shrinkage.
  • Can be applied on dry or mat damp surface.
  • Impermeable to liquids and water vapour.
  • Can be applied on vertical surface.
Where to buy
Product Data Sheet
Show all documents

Usage

As a structural adhesive and mortar for:
  • Concrete elements.
  • Steel, Iron, Aluminium.
  • Mortar, Bricks.
  • Ceramics, tile, natural stone.

As a repair mortar and adhesive:
  • Corners and edges of concrete elements.
  • Holes and void filling.
  • Repair crack of concrete and mortar.


Advantages

  • High compressive strength.
  • High adhesion strength.
  • Good abrasion resistance.
  • Hardens without shrinkage.
  • Can be applied on dry or mat damp surface.
  • Impermeable to liquids and water vapour.
  • Can be applied on vertical surface.

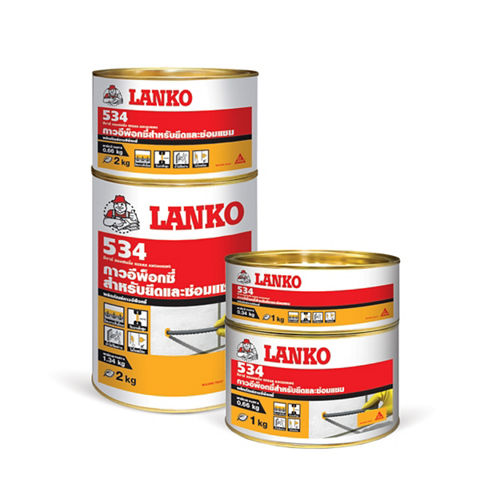

Packaging

1 kg set (A+B), 12 sets per box (12 kgs)
2 kg set (A+B), 12 sets per box (24 kgs)

Colour

Component A : White
Component B : Dark grey
Component A+B mixed : Concrete grey

Product Details

Product Information

Composition

Epoxy resin

Shelf life

24 months from the date of production If stored properly in undamaged, original, sealed packaging.

Storage conditions

store in dry conditions at temperatures between +5°C and +30°C. Protect from direct sunlight.

Density

1.90 ± 0.1 kg/L (components A+B mixed)
Technical Information

Tensile strength

1 day @30°C

3 days @30°C

≥ 7 MPa

≥ 15 MPa

Tensile adhesion strength

1 day on dry concrete
@10°C

1 day on steel
@10°C

≥ 3 MPa

≥ 5 MPa

Application

Application Information

Mixing ratio

Component A : Component B = 2 : 1 by weight or volume

Ambient air temperature

+10°C min. / +30°C max.

Pot Life

~ 35 minutes (at +30°C)
Consumption

Consumption

1.9 kg/sq.m. per 1 mm thickness
Application steps

SUBSTRATE PREPARATION

  1. Mortar and concrete must be older than 28 days (depends on minimal requirement of strengths).
  2. Substrates must be sound, dry or mat damp (no standing water), clean and free from laitance, grease, oils or paint.

MIXING

Machine-mix component A : component B = 2 : 1 by weight or volume for at least 3 minutes with a mixing spindle attached to a slow speed electric drill (max. 300 rpm) until the material becomes smooth in consistency and a uniform grey colour. Then pour the whole mixed adhesive into a clean container and stir again for approx. 1 more minute at low speed to keep air entrapment at a minimum. Mix only that quantity which can be used within its potlife.
