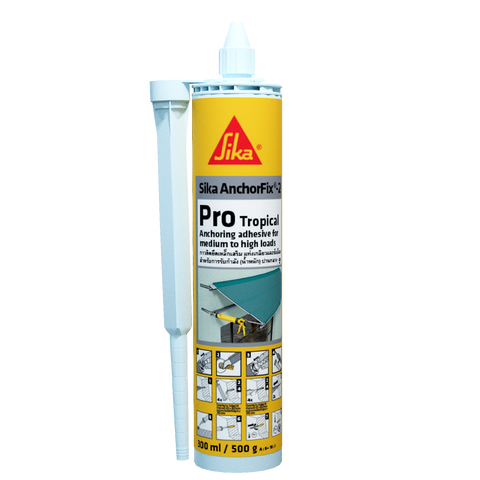

Sika AnchorFix®-2 Pro Tropical

Anchoring adhesive for medium to high loads in hot climates

Sika AnchorFix®-2 Pro Tropical is a 2-part epoxy acrylate anchoring adhesive for hot or tropical climate conditions. It is free of solvents and styrene.

  • Fast curing
  • Application with single-tube dispensers
  • Very good load capacity
  • Suitable for cracked and uncracked concrete
  • Seismic testing C1 and C2 available
  • Thixotropic: non-sag in vertical and overhead applications
  • Styrene-free
  • Low odour
  • Low wastage
  • Suitable for application to dry or wet concrete
  • Suitable for application with flooded bore holes (except salt water)
Where to buy
Product Data Sheet
Show all documents

Usage

The Product is used as a fast-curing anchoring adhesive for the following substrates and materials:
  • Reinforcing steel
  • Threaded rods
  • Bolts and special fastening systems
  • Concrete
  • Solid masonry
  • Steel
  • Hard natural stone
  • Solid rock


Advantages

  • Fast curing
  • Application with single-tube dispensers
  • Very good load capacity
  • Suitable for cracked and uncracked concrete
  • Seismic testing C1 and C2 available
  • Thixotropic: non-sag in vertical and overhead applications
  • Styrene-free
  • Low odour
  • Low wastage
  • Suitable for application to dry or wet concrete
  • Suitable for application with flooded bore holes (except salt water)

Packaging

165 ml standard cartridge

12 cartridges per box

105 boxes per pallet

300 ml standard cartridge

12 cartridges per box

96 boxes per pallet

380 ml coaxial cartridge

12 cartridges per box

70 boxes per pallet

825 ml side-by-side cartridge

8 cartridges per box

39 boxes per pallet

Refer to the current price list for available packaging variations.

Colour

Part A

off white

Part B

black

Part A+B

grey

Product Details

Sustainability / Certifications / Approvals

CERTIFICATES AND TEST REPORTS

  • CE marking and declaration of performance based on European Technical Assessment ETA-21/0666. ETA issued on the basis of EAD 330499-01-0601 Bonded fasteners for use in concrete.

  • CE marking and declaration of performance based on European Technical Assessment ETA-21/0665. ETA issued on the basis of EAD 330499-00-0601 Bonded fasteners for use in concrete.
Product Information

Shelf life

165 ml standard cartridge

12 months from date of production.

300 ml standard cartridge

12 months from date of production.

380 ml coaxial cartridge

18 months from date of production.

825 ml side-by-side cartridge

18 months from date of production.

All cartridges have the expiry date printed on the label.

Storage conditions

The Product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +25 °C. Always refer to packaging.

Refer to the current Safety Data Sheet for information on safe handling and storage.

Density

Part A+B mixed

1.77 kg/l
System information

System structure

Ancillary products:

  • Sika AnchorFix® Flexible Extensions

  • Sika AnchorFix® Hole Cleaning Brushes Steel

  • Sika AnchorFix® Static Mixers / Nozzles

  • Sika AnchorFix® Straight Extensions

  • Sika AnchorFix® Resin Stoppers
Technical Information

Compressive strength

Cured 7 days at +20 °C

60 N/mm2

Modulus of elasticity in compression

Cured 7 days at +20 °C

4 500 N/mm2

Flexural-strength

Cured 7 days at +20 °C

17 N/mm2

Tensile strength

Cured 7 days at +20 °C

9 N/mm2

Electrical resistivity

3.6 × 109 Ω

(IEC 60093)

Service temperature

TEMPERATURE RANGE T1

Time

Minimum

Maximum

Long term

-40 °C

+24 °C.

Short term (up to 2 hours)

-

+40 °C

TEMPERATURE RANGE T2

Time

Minimum

Maximum

Long term

-40 °C

+50 °C.

Short term (up to 2 hours)

-

+80 °C

Application

Application Information

Mixing ratio

Part A : Part B

10 : 1 by volume

Layer thickness

Maximum

5 mm

Sag flow

Non-sag, even overhead

Material temperature

Maximum

+45 °C

Minimum

+5 °C

Ambient air temperature

Maximum

+45 °C

Minimum

+10 °C

Substrate temperature

Maximum

+45 °C

Minimum

+10 °C

Curing time

Temperature

Open time - Tgel

Curing time - Tcur

Tcur is doubled for wet concrete

+ 45 °C

2 minutes

20 minutes

+40 °C to +44 °C

4 minutes

25 minutes

+35 °C to +39 °C

6 minutes

45 minutes

+30 °C to +34 °C

10 minutes

80 minutes

+20 °C to +29 °C

15 minutes

145 minutes

+15 °C to +19 °C

20 minutes

210 minutes

+10 °C to +14 °C

30 minutes

5 hours
Application steps

SUBSTRATE QUALITY

Mortar and concrete must be older than 28 days.

Verify the substrate strength (concrete, masonry, natural stone). Perform pull-out tests if the substrate strength is unknown.

Make sure that the anchor hole is clean, dry, free from oil and grease. Remove loose particles from the anchor hole.

Clean threaded rods and reinforcement bars thoroughly. Remove oil, grease or any other substances and particles such as dirt.



MIXING

GETTING THE CARTRIDGE READY: 165 ML OR 300 ML

1. Unscrew the cap.

02-Anchorfix_cartridge-Unscrew_the_cap-690

2. Cut the film

02-Anchorfix_cartridge-Cut_the_film-693

3. Screw on the static mixer.

02-Anchorfix_cartridge-Screw_on_the_static_mixer-692

4. Place the cartridge into the dispenser and start application.02-Anchorfix_cartridge-Place_the_cartridge_into_the_gun-690



GETTING THE CARTRIDGE READY: 380 ML OR 825 ML

1. Unscrew the cap.

02-Anchorfix_2_part-Unscrew_the_cap-600

2. Remove the cap.

02-Anchorfix_2_part-Remove_the_cap-600

3. Screw on the static mixer.

02-Anchorfix_2_part-Screw_on_the_mixer-600

4. Place the cartridge into the dispenser and start application.

02-Anchorfix_2_part-Place_the_cartridge_into_the_gun-600

APPLICATION

Test if the Product is suitable for the substrate

Note: Due to the variety of possible substrates, the Product's suitability for the substrate must be confirmed before application, particularly in terms of desired bond strength, composition, porosity, potential surface staining or discolouration.

  1. Test the Product's suitability in a sample area.


Hardened material in the static mixer nozzle

Note: When work is interrupted, the static mixer nozzle can remain on the cartridge after the pressure of the sealant dispenser has been released.

  1. Attach a new nozzle if the resin has hardened in the nozzle when work is resumed

ANCHORS IN SOLID MASONRY OR CONCRETE

  1. Drill a hole with an electric drill to the diameter and depth required. IMPORTANT Make sure that the drill hole diameter is in accordance with the anchor size.

02-Anchorfix_Drilling_the_hole_pro-293

CLEANING DRILL HOLES WITH DIAMETER D0 ≤ ⌀ 20 MM AND EMDEDDED DEPTH ≤ 240 MM

  1. IMPORTANT Use oil-free compressors. Clean the drill hole with a blow pump or by compressed air, starting from the bottom of the drill hole.

    Note: Clean the drill hole a minimum of two times.

    02-Anchorfix_clean_with_blow_pump_pro-264

  2. Thoroughly clean the drill hole with a steel brush.

    Note: The diameter of the brush must be larger than the diameter of the drill hole. Clean the drill hole a minimum of two times.

    02-Anchorfix_clean_with_brush_pro-308

  3. IMPORTANT Use oil-free compressors. Clean the drill hole with a blow pump or by compressed air, starting from the bottom of the drill hole.

    Note: Clean the drill hole a minimum of two times.

    02-Anchorfix_clean_with_blow_pump_pro-264

CLEANING DRILL HOLES WITH DIAMETER D0 > ⌀ 20 MM AND EMDEDDED DEPTH > 240 MM

  1. IMPORTANT Use oil-free compressors. Start from the bottom and clean the drill hole using an air lance, pressure: 6 bar (90 psi).

    Note: Clean the drill hole a minimum of two times until the return air stream is free from dust.

    02-Anchorfix_clean_with_air_lance_pro-247

  2. Thoroughly clean the drill hole with a steel brush.

    Note: The diameter of the brush must be larger than the diameter of the drill hole. Clean the drill hole a minimum of two times.

    02-Anchorfix_clean_with_brush_pro-308

  3. IMPORTANT Use oil-free compressors. Start from the bottom and clean the drill hole using an air lance, pressure: 6 bar (90 psi).

    Note: Clean the drill hole a minimum of two times until the return air stream is free from dust.

    02-Anchorfix_clean_with_air_lance_pro-247

ADHESIVE APPLICATION

  1. Pump the Product until both parts are extruded uniformly, with a consistent colour. IMPORTANT Do not use this material. Release the dispenser pressure and clean the cartridge nozzle with a cloth.

    02-Anchorfix_pump_until_both_parts_come_out_pro-211

  2. IMPORTANT Do not entrap air into the drill hole. Inject the Product into the drill hole starting from the bottom, while slowly drawing back the static mixer.

    Note: For deep drill holes, extension tubing can be used.

    02-Anchorfix_inject_the_adhesive_pro-213

  3. IMPORTANT Place the anchor within the open time. Insert the anchor with a rotary motion into the filled drill hole.

    Note: Some adhesive must come out of the drill hole.

    02-Anchorfix_insert_the_anchor_pro-218

  4. Do not load or move the anchor during the hardening time.

    02-Anchorfix_hardening_pro-183

  5. Immediately clean tools with Sika® Colma Cleaner.

  6. Wash hands and skin thoroughly with warm soap water.

CLEANING OF EQUIPMENT

Clean all tools and application equipment with Sika® Colma Cleaner immediately after use. Hardened material can only be removed mechanically.
